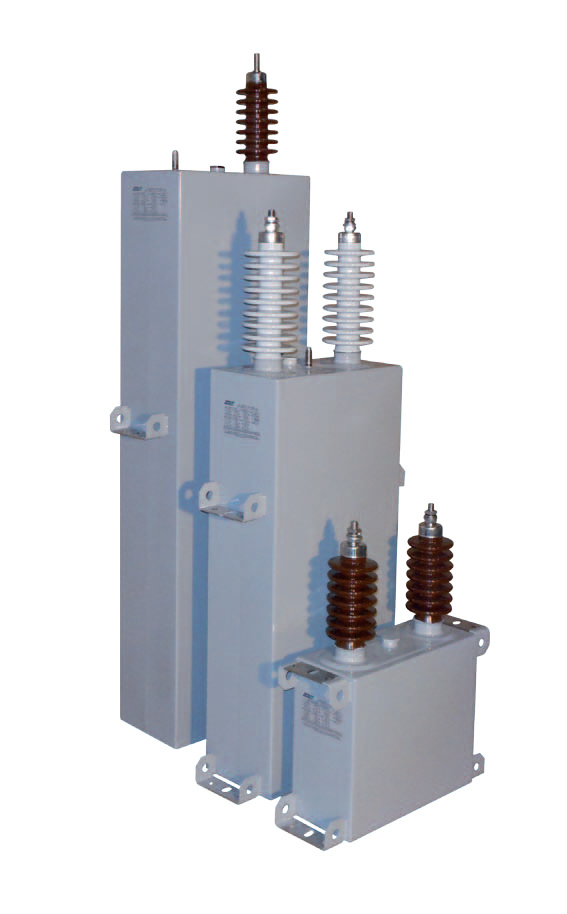

MFPI single-phase capacitors are the result of continual innovation and technological development of materials and production cycles, featuring extra low losses, high reliability and they are applicable to various needs.
They are chiefly used in making:
Capacitors are made and tested in compliance with the national CEI and international IEC standards; they can be made with all the terminals insulated or with a terminal connected to the container.
Enerlux Power Srl can manufacture, additionally to the capacitors showed on the catalogue, many other solutions and characteristics based on the specific request from the customer.

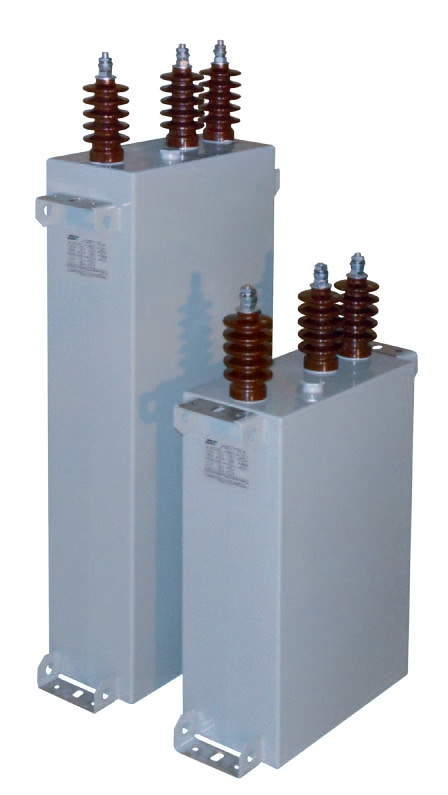

Double split capacitors of MFPI.D type are the result of the realization of two capacitors belonging to the series MFPI in a sole container; such a construction allows the realization of double star Y-Y batteries with unbalance transformer with only No 3 capacitors instead of the No 6 units foreseen by the standard realization.
Thus, this application offers a compact construction with a limited size and is particularly indicated to assemble batteries of small and medium power where the unbalance protection is needed as the low cost. This unit has three bushings one of which is the common terminal while the others two capacitive tappings.
Enerlux Power Srl can manufacture, additionally to the capacitors showed on the catalogue, many other solutions and characteristics based on the specific request from the customer.

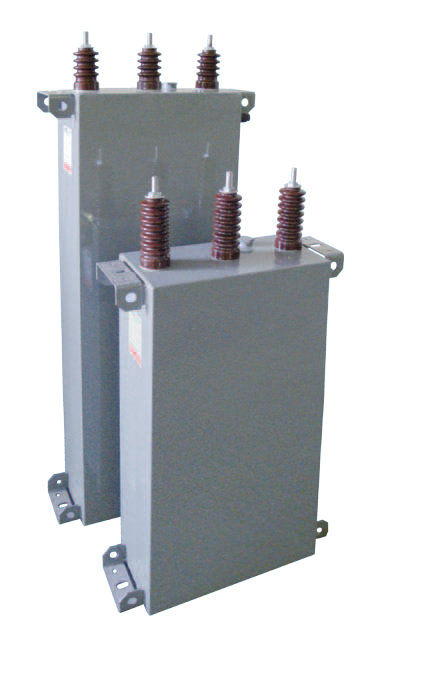

TFPI three-phase capacitors are the result of continual innovation and technological development of materials and production cycles; they feature extra low losses, high reliability and are applicable to various needs. They are chiefly used in making:
The max rated voltage is 17,5 kV; for higher voltages, single-phase capacitors with a star connection are used.
Enerlux Power Srl can manufacture, additionally to the capacitors showed on the catalogue, many other solutions and characteristics based on the specific request from the customer.

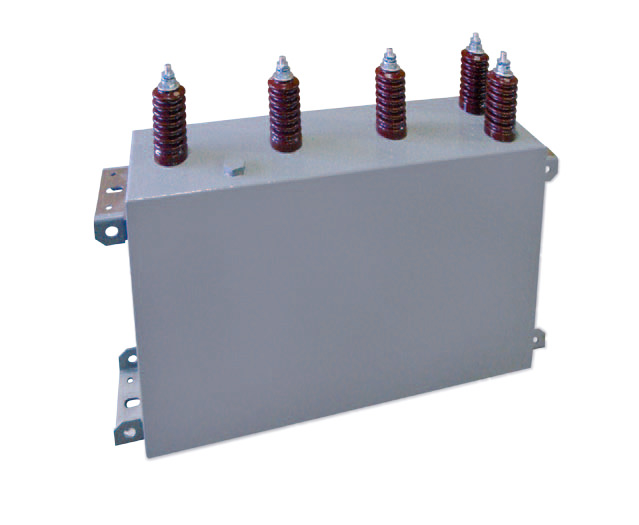

Three-phase capacitors of TFPI.N2 type are the result of the realization of a sole three-phase battery with double star connection in a sole container; such a construction allows the realization of double star Y-Y batteries with unbalance transformer in a sole three-phase capacitor instead of the No 6 single-phase units foreseen by the standard realization. Thus, this application offers an evident economical advantage, a compact construction with a limited size and is particularly indicated to assemble batteries of small power where the unbalance protection is needed as the low cost.
This unit has three bushings for phase connection and two bushings to connect the unbalance transformer. For higher voltages this battery can be made using two three-phase capacitors with a No 1 star center and No 4 bushings (TFPI.N series), where the fourth bushing is related to a sole accessible star center; for higher powers three units of MFPI.D series must be used.
Enerlux Power Srl can manufacture, additionally to the capacitors showed on the catalogue, many other solutions and characteristics based on the specific request from the customer.
